Affordable FRP Water Softener Tank for Industrial and Residential Water Treatment Systems
商品の詳細:
| Place of Origin: | China |
| ブランド名: | China brand |
| 証明: | CE/UL/NSF |
| Model Number: | Various models available |
| ドキュメント: | FRP-tanks-print.pdf |
お支払配送条件:
| Minimum Order Quantity: | 1 set |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 set per month |
|
詳細情報 |
|||
| Product Size options(inch): | Various size available | Product Diam&Height options(mm): | Multiple options |
|---|---|---|---|
| Product Opening options(inch): | Top&Bottom Opening 4"Thread | Product design Flow Rate(T/H): | Multiple options |
| The Original of the tank: | China | Key Benefits: | Easy Maintenance And Upkeep,Corrosion resistant and no leak |
| Product Main Material: | FRP or reinforced PP | Usage: | Industry, Agriculture, Chemical，Water Softener，Industrial Water Treatment |
製品の説明

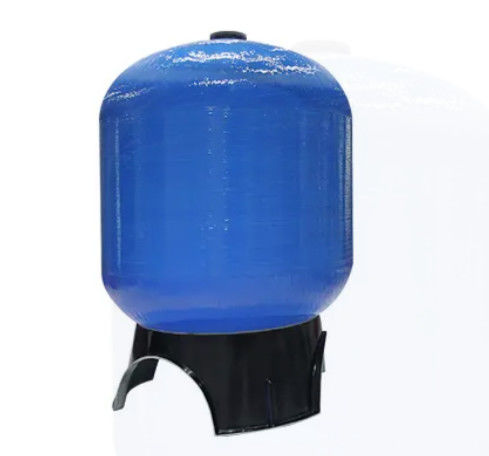

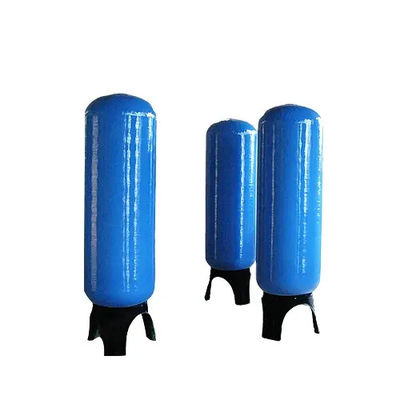

Affordable FRP Water Softener Tank for Industrial and Residential Water Treatment Systems
FRP Vessels for Water Treatment are corrosion-resistant composite pressure containers manufactured via automated 4-axis filament winding. Based on polyethylene (PE) or fiber-reinforced plastic (FRP) liners, they integrate reinforcing fibers (e.g., fiberglass/carbon fiber) with high-performance thermoset resins (epoxy/vinyl ester) to form monolithic structures in a single forming cycle. This advanced process eliminates seams, creating vessels with:
- Extreme corrosion resistance (pH 1-14 compatibility)
- Pressure rating: 0.6-4.0 MPa
- Service life: 20+ years
Structural Components:
- Axial Ports: Molded top/bottom openings with high-density threaded fittings (NPT/BSP) or ANSI/DIN flanges (PN16 rating, DN15-DN500 compatible)
- Cylindrical Shell: 4D-wound composite wall (3-25mm thickness), inner surface smoothness Ra≤0.4μm (FDA/NSF compliant)
- Discharge Outlet: Angled (45°/90°) anti-clog design, flow capacity 5-500m³/h
- Base Assembly:
- FRP Base: Continuous wound construction, compressive strength ≥250MPa
- Reinforced PP Base: 20%-30% glass-fiber reinforced, operating range -30°C to 100°C
Technical Advantages:
- Temperature resilience: -40°C to 80°C operation
- Modular integration: Supports IoT pressure sensors/automatic valves
|
尺寸(英寸) |
直径&高度(mm) |
开口(英寸) |
设计流量(T/ H ) |
|
0818 |
φ200×450 |
顶部开口2.5英寸螺纹 |
0.1～0.2 |
|
0835 |
φ200×890 |
顶部开口2.5英寸螺纹 |
0.2～0.4 |
|
0844 |
φ200×1100 |
顶部开口2.5英寸螺纹 |
0.2～0.5 |
|
1035 |
φ250×890 |
顶部开口2.5英寸螺纹 |
0.5～1.0 |
|
1054 |
φ250×1400 |
顶部开口2.5英寸螺纹 |
0.5～1.5 |
|
1254 |
φ300×1400 |
顶部开口2.5英寸螺纹 |
1.6～2.2 |
|
1265 |
φ300 ×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1354 |
φ325 ×1400 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1365 |
φ325×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1454 |
φ350×1400 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1465 |
φ350×1650 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1654 |
φ400×1400 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
1665 |
φ400×1650 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
2069 |
φ500×1750 |
顶部开口4英寸螺纹 |
4.5～6.0 |
|
2069 |
φ500×1750 |
顶部和底部开口 4” 螺纹 |
4.5～6.0 |
|
2474 |
φ600 ×1900 |
顶部开口4英寸螺纹 |
6.2～8.2 |
|
2474 |
φ600×1900 |
顶部和底部开口4英寸螺纹 |
6.2～8.2 |
|
3074 |
φ750×1900 |
顶部开口4英寸螺纹 |
7.2～12.2 |
|
3074 |
φ750×1900 |
顶部和底部开口4英寸螺纹 |
7.2～12.2 |
|
3674 |
φ900×1900 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3674 |
φ900×1900 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3696 |
φ900×2400 |
顶部和底部开口6英寸法兰 |
13.2～16.2 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4087 |
φ1000×2200 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4096 |
φ1000×2400 |
顶部和底部开口6英寸法兰 |
18.0～25.0 |
|
4887 |
φ1200×2200 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
4896 |
φ1200×2400 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
6096 |
φ1500×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
6396 |
φ1600×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
7296 |
φ1800×2400 |
顶部和底部开口6英寸法兰 |
55.0～80.0 |
|
8096 |
φ2000×2400 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
|
80102 |
φ2000×2600 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
