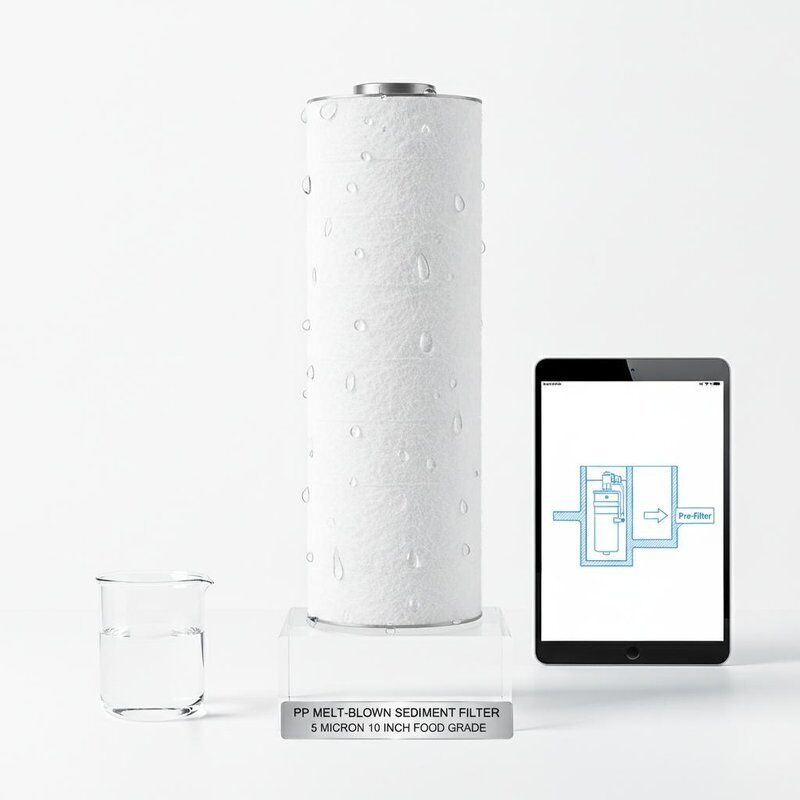

PP Melt-Blown Sediment Filter Cartridge 5 Micron 10 Inch Standard Size Food Grade Polypropylene RO Pre-Filtration
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | Fenigal/OEM |
| 証明: | FDA, NSF 42, ISO 9001:2015 |
| モデル番号: | PP-SF10-5M |
お支払配送条件:
| 最小注文数量: | 100個 |
|---|---|
| 価格: | USD 0.5-1.5 / Piece |
| パッケージの詳細: | 個別の PE 密封袋、25 個/輸出カートン、シュリンクラップでパレット化 |
| 受渡し時間: | 在庫に3〜5営業日、生産に10〜15日 |
| 支払条件: | T/T、L/C、Western Union、PayPal |
| 供給の能力: | 月あたり 100,000 個 |
|
詳細情報 |
|||
| フィルターの種類: | メルトブローン沈殿物カートリッジ | フィルターメディア: | 100%ポリプロピレン (PP) |
|---|---|---|---|
| フィルタリング評価: | 5ミクロンアブソリュート | カートリッジの長さ: | 10インチ(254mm) |
| 外径: | 63mm (2.5インチ) | 最大流量: | 20 L/分 (5.3 GPM) |
| 最高温度: | 60°C (140°F) | 終了設定: | ダブルオープンエンド (DOE) |
| ハイライト: | PP melt-blown sediment filter cartridge,5 micron RO pre-filtration,10 inch food grade polypropylene filter |
||
製品の説明
PP Melt-Blown Sediment Filter Cartridge 5 Micron
Our 5 micron melt-blown polypropylene sediment filter cartridge in 10 inch standard size is manufactured from 100% food grade polypropylene using advanced melt-blown technology. The gradient density structure provides progressive depth filtration with high dirt holding capacity, effectively removing sand, rust, silt, and suspended particles from water.
Key Features
- 5 micron absolute filtration rating for fine particle removal
- 10 inch standard size compatible with common filter housings
- 100% food grade polypropylene without binders or adhesives
- Gradient density depth filtration for longer service life
- High dirt holding capacity reducing replacement frequency
- Resistant to bacteria and chemical growth
- Wide chemical compatibility for diverse water sources
- NSF certified material for potable water safety
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media | 100% Polypropylene (PP) Melt-Blown |
| Filtration Rating | 5 Micron (Absolute) |
| Cartridge Length | 10 inch (254mm) |
| Outer Diameter | 63mm (2.5") |
| Inner Diameter | 28mm (1.1") |
| Maximum Flow Rate | 20 L/min (5.3 GPM) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| Maximum Operating Temperature | 60°C (140°F) |
| End Cap Configuration | Double Open End (DOE) |
| Material Certification | FDA, NSF 42 Compliant |
Applications
- RO system pre-filtration protection
- Whole house point-of-entry water filtration
- Commercial beverage and food processing
- Industrial cooling tower make-up water
- Car wash water recycling systems
- Swimming pool and spa filtration
- Agricultural drip irrigation pre-treatment
Packaged individually in sealed PE bag, 25 pieces per export carton. Custom micron ratings (1, 5, 10, 20, 50 micron) and sizes available. OEM private labeling with custom branding offered.
