Vessel FRP Water Treatment Composite Tank Easy Transportation And Installation
商品の詳細:
| Place of Origin: | China |
| ブランド名: | China brand |
| 証明: | CE/UL/NSF |
| Model Number: | 0835 |
| ドキュメント: | FRP-tanks-print.pdf |
お支払配送条件:
| Minimum Order Quantity: | 1 set |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film/Containerized |
| Delivery Time: | 5-8 working days after payment received |
| Payment Terms: | T/T |
| Supply Ability: | 10,000 set per month |
|
詳細情報 |
|||
| Tank Size(inch): | 08x35 | Tank Diam&Height(mm): | φ200×890 |
|---|---|---|---|
| Tank Opening(inch): | Top Opening 2.5"Thread | Design Flow Rate(T/H): | 0.2～0.4 |
| Original: | China | Advantages: | Easy Transportation And Installation |
| Material: | FRP | Main Usage: | Water treatment |
製品の説明

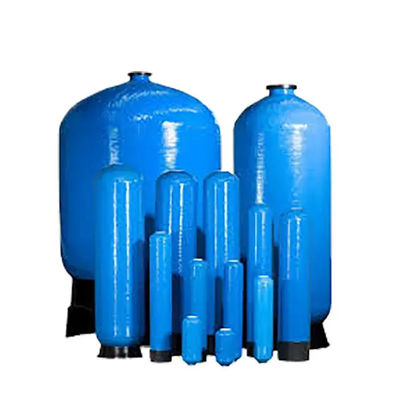

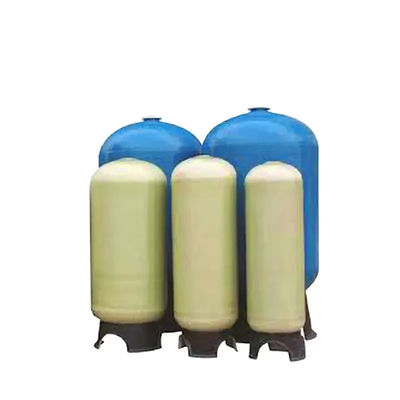

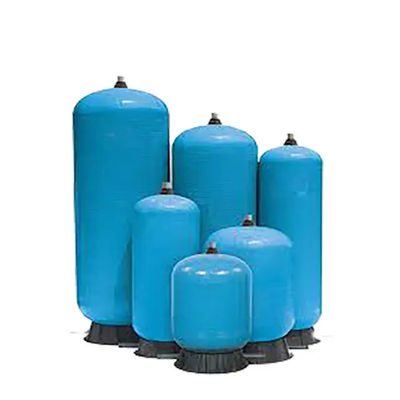

Vessel FRP Water Treatment Composite Tank Easy Transportation And Installation
Water treatment applications utilize specialized FRP tanks designed as corrosion-resistant composite pressure vessels. These tanks feature either a PE or FRP liner, upon which reinforced fibers and high-performance resin are applied via a sophisticated four-dimensional winding process to create a seamless, monolithic structure. This manufacturing approach ensures the tanks can address the diverse requirements of various water purification systems.
Constructed from key components including an upper opening, lower opening, cylindrical body, discharge port, and base, the tanks ensure secure connections. Typically, high-density, high-strength threading or flanges are employed at the upper and lower openings and discharge port for reliable attachment points. The base structure is commonly fabricated from either fiber-reinforced plastic (FRP) or reinforced polypropylene (PP).
Serving a critical role in water treatment processes, these vessels handle liquids ranging from potable water and ultrapure water to softened supplies and wastewater effluent. Their utility extends across numerous sectors, including industrial manufacturing, agricultural operations, chemical processing, pharmaceutical production, food and beverage preparation, and brewing. Furthermore, FRP water treatment tanks are equally suitable for residential settings and commercial establishments. Manufacturers offer a selection of tank types and sizes to accommodate precise operational needs and filtration objectives.
|
尺寸(英寸) |
直径&高度(mm) |
开口(英寸) |
设计流量(T/ H ) |
|
0818 |
φ200×450 |
顶部开口2.5英寸螺纹 |
0.1～0.2 |
|
0835 |
φ200×890 |
顶部开口2.5英寸螺纹 |
0.2～0.4 |
|
0844 |
φ200×1100 |
顶部开口2.5英寸螺纹 |
0.2～0.5 |
|
1035 |
φ250×890 |
顶部开口2.5英寸螺纹 |
0.5～1.0 |
|
1054 |
φ250×1400 |
顶部开口2.5英寸螺纹 |
0.5～1.5 |
|
1254 |
φ300×1400 |
顶部开口2.5英寸螺纹 |
1.6～2.2 |
|
1265 |
φ300 ×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1354 |
φ325 ×1400 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1365 |
φ325×1650 |
顶部开口2.5英寸螺纹 |
2.0～2.5 |
|
1454 |
φ350×1400 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1465 |
φ350×1650 |
顶部开口2.5英寸螺纹 |
2.5～3.0 |
|
1654 |
φ400×1400 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
1665 |
φ400×1650 |
顶部开口2.5英寸螺纹 |
3.2～4.5 |
|
2069 |
φ500×1750 |
顶部开口4英寸螺纹 |
4.5～6.0 |
|
2069 |
φ500×1750 |
顶部和底部开口 4” 螺纹 |
4.5～6.0 |
|
2474 |
φ600 ×1900 |
顶部开口4英寸螺纹 |
6.2～8.2 |
|
2474 |
φ600×1900 |
顶部和底部开口4英寸螺纹 |
6.2～8.2 |
|
3074 |
φ750×1900 |
顶部开口4英寸螺纹 |
7.2～12.2 |
|
3074 |
φ750×1900 |
顶部和底部开口4英寸螺纹 |
7.2～12.2 |
|
3674 |
φ900×1900 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3674 |
φ900×1900 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部开口4英寸螺纹 |
13.2～16.2 |
|
3687 |
φ900×2200 |
顶部和底部开口4英寸螺纹 |
13.2～16.2 |
|
3696 |
φ900×2400 |
顶部和底部开口6英寸法兰 |
13.2～16.2 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4074 |
φ1000×1900 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4087 |
φ1000×2200 |
顶部和底部开口4英寸螺纹 |
17.0～23.0 |
|
4096 |
φ1000×2400 |
顶部和底部开口6英寸法兰 |
18.0～25.0 |
|
4887 |
φ1200×2200 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
4896 |
φ1200×2400 |
顶部和底部开口6英寸法兰 |
28.0～38.0 |
|
6096 |
φ1500×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
6396 |
φ1600×2400 |
顶部和底部开口6英寸法兰 |
38.0～55.0 |
|
7296 |
φ1800×2400 |
顶部和底部开口6英寸法兰 |
55.0～80.0 |
|
8096 |
φ2000×2400 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
|
80102 |
φ2000×2600 |
顶部和底部开口6英寸法兰 |
80.0～100.0 |
