IONPURE LX-Z CEDI Module IP-LXM30Z-5 Chemical-Free Water Purification
商品の詳細:
| Place of Origin: | China |
| ブランド名: | IONPURE |
| 証明: | CE |
| Model Number: | IP-LXM30Z-5 |
| ドキュメント: | fgwater-ionpure-lxz-ds.pdf |
お支払配送条件:
| Minimum Order Quantity: | 1 pc |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
詳細情報 |
|||
| IP-LXM30Z-5 Minimum Flow Rate m3/hr (gpm): | 1.70 (7.5) | IP-LXM30Z-5 Design Flow Rate m3/hr (gpm): | 3.3-5.11 (15.0-22.5) |
|---|---|---|---|
| IP-LXM30Z-5 Shipping Weight kg (lbs)**: | 132 (291) | IP-LXM30Z-5 Operating Weight kg (lbs): | 110 (243) |
| IP-LXM30Z-5 Recovery: | 90–95% | IP-LXM30Z-5 Advantages: | Greater Stability |
| Stack Temperature: | 5–45˚C (41–113˚F) | Stack Inlet Pressure: | 1.4–6.9 bar (20–100 psig) |
| Application: | The Production Of Pure Water | ||
| ハイライト: | IONPURE LX-Z EDI module,chemical-free water purification module,IP-LXM30Z-5 CEDI module |
||
製品の説明
| IP-LXM30Z-5 Minimum Flow Rate m3/hr (gpm) | 1.70 (7.5) |
| IP-LXM30Z-5 Design Flow Rate m3/hr (gpm) | 3.3-5.11 (15.0-22.5) |
| IP-LXM30Z-5 Shipping Weight kg (lbs) | 132 (291) |
| IP-LXM30Z-5 Operating Weight kg (lbs) | 110 (243) |
| IP-LXM30Z-5 Recovery | 90–95% |
| IP-LXM30Z-5 Advantages | Greater Stability |
| Stack Temperature | 5–45˚C (41–113˚F) |
| Stack Inlet Pressure | 1.4–6.9 bar (20–100 psig) |
| Application | The Production Of Pure Water |

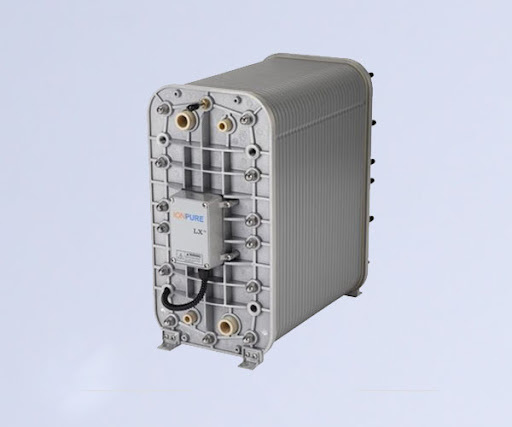

The IONPURE® LX-Z IP-LXM30Z-5 is a premium industrial-grade Continuous Electrodeionization (CEDI) module engineered to deliver ultra-pure water without chemical regeneration. Designed for reliability in high-stakes environments, this membrane stack leverages Siemens' patented CEDI technology to replace traditional mixed-bed ion exchange systems, eliminating hazardous chemical handling while ensuring consistent, high-quality output for critical industrial processes.
- Chemical-Free Operation
- Zero Chemical Regeneration: Utilizes electrical current to continuously regenerate ion-exchange resins, removing dissolved ions without acids, alkalis, or neutralization systems.
- Stable Output Quality: Produces water with resistivity >16 MΩ*cm, ensuring compliance with international purity standards.
- Robust Industrial Design
- Durability: Constructed with corrosion-resistant materials, supporting continuous operation at pressures up to 7 bar (100 psi) and temperatures up to 45°C.
- Leak-Proof Integrity: Dual O-ring seals and rigid structural frame prevent leaks during high-pressure operation.
- Efficiency & Scalability
- Optimized Energy Use: Adaptive DC power supply dynamically adjusts to feedwater conductivity and flow rates.
- Modular Deployment: Designed for seamless integration into systems requiring 3.3 -5.1 m³/h of high-purity water.
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under ISO 9001 and ISO 14000 quality and environmental management system standards.
The module should be installed indoors, away from direct sunlight, with ambient temperature not exceeding 113°F (45°C) to ensure stable and efficient operation.
| Operating Parameters | |
|---|---|
| Recovery | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
| Product Water Quality | |
| Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal | 90-99%, depending on feed conditions |
| Feed Water Conductivity Equivalent, including CO2 and Silica | < 40 μS/cm |
| Feed Water Source | RO permeate |
| Temperature | 5-45˚C (41-113˚F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Maximum Total Chlorine (as Cl2) | < 0.05 ppm |
| Iron (as Fe) | < 0.01 ppm |
| Manganese (as Mn) | < 0.01 ppm |
| Sulfide (S2-) | < 0.01 ppm |
| pH | 4-11 |
| Total Hardness (as CaCO3) | < 1.0 ppm |
| Dissolved Organics (TOC as C) | < 0.5 ppm |
| Silica (SiO2) | < 1.0 ppm |

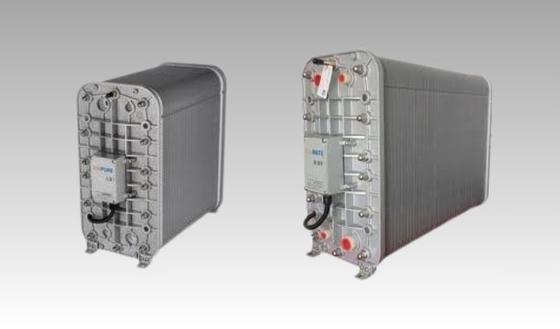

| Item Number | L +/- 6.4 mm (0.25") | C +/- 3.2 mm (0.13") |
|---|---|---|
| LXM04Z | 257 mm (10.12") | 146.8 mm (5.78") |
| LXM10Z | 347.7 mm (13.69") | 235.7 mm (9.28") |
| LXM18Z | 488.2 mm (19.22") | 353.8 mm (13.93") |
| LXM24Z | 601.7 mm (23.69") | 442.7 mm (17.43") |
| LXM30Z | 696.5 mm (27.42") | 531.3 mm (20.92") |
| LXM45Z | 907.3 mm (35.72") | 747.7 mm (29.44") |
| LX8000Z | 1062 mm (41.81") | 888 mm (34.95") |
| Ordering Part # | Model Number | Minimum Flow Rate m3/hr (gpm) | Design Flow Rate m3/hr (gpm) | Shipping Weight kg (lbs) | Operating Weight kg (lbs) |
|---|---|---|---|---|---|
| W3T17286 | IP-LXM04Z-5 | 0.22 (1.0) | 0.44-0.67 (2.0-3.0) | 59 (130) | 31 (69) |
| W3T17291 | IP-LXM10Z-5 | 0.57 (2.5) | 1.1-1.65 (5.0-7.5) | 78 (171) | 51 (113) |
| W3T17297 | IP-LXM18Z-5 | 1.02 (4.5) | 2.0-3.1 (9.0-13.5) | 99 (217) | 74 (163) |
| W3T17303 | IP-LXM24Z-5 | 1.36 (6.0) | 2.8-4.2 (12.5-18.8) | 115 (254) | 92 (103) |
| W3T17312 | IP-LXM30Z-5 | 1.70 (7.5) | 3.3-5.11 (15.0-22.5) | 132 (291) | 110 (243) |
| W3T17314 | IP-LXM45Z-5 | 2.57 (11.3) | 5.1-7.67 (22.5-33.8) | 205 (451) | 157 (345) |
| W3T584543 | IP-LX8000Z-5 | 3.13 (13.75) | 7.5 - 10 (33 - 44) | 225 (496) | 190 (419) |

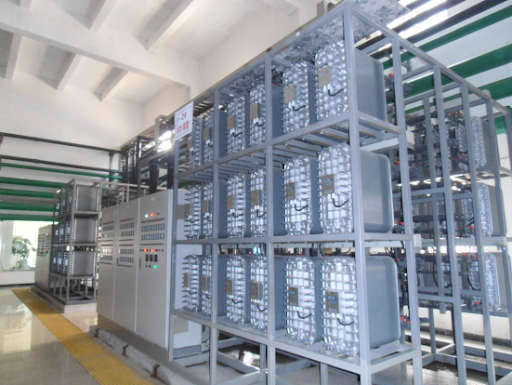

E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please visit: www.fgwater.com/Industries/
