Ionpure CEDI LX-Z IP-LXM24Z-5 EDI Module for Biopharmaceutical Industry
商品の詳細:
| Place of Origin: | China |
| ブランド名: | IONPURE |
| 証明: | CE |
| Model Number: | IP-LXM24Z-5 |
| ドキュメント: | fgwater-ionpure-lxz-ds.pdf |
お支払配送条件:
| Minimum Order Quantity: | 1 pc |
|---|---|
| 価格: | 交渉可能 |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
詳細情報 |
|||
| IP-LXM24Z-5 Minimum Flow Rate m3/hr (gpm): | 1.36 (6.0) | IP-LXM24Z-5 Design Flow Rate m3/hr (gpm): | 2.8-4.2 (12.5-18.8) |
|---|---|---|---|
| IP-LXM24Z-5 Shipping Weight kg (lbs)**: | 115 (254) | IP-LXM24Z-5Operating Weight kg (lbs): | 92 (103) |
| IP-LXM24Z-5 Recovery: | 90–95% | Advantages: | Wide Range Of Flow,Low Operating Costs |
| Application: | Biopharmaceutical Industry | Stack Minimum Flow Rate m3/hr (gpm): | 1.36 (6.0) |
| Stack Design Flow Rate m3/hr (gpm): | 2.8-4.2 (12.5-18.8) | Stack Shipping Weight kg (lbs)**: | 115 (254) |
| Stack Operating Weight kg (lbs): | 92 (103) | Stack Recovery: | 90–95% |
| DC Voltage: | 0–400 | DC Amperage: | 1.0–6.0 |
| Advantage: | Good Water Quality | ||
| ハイライト: | Ionpure CEDI LX-Z EDI module,EDI module for biopharmaceutical industry,IP-LXM24Z-5 EDI module with warranty |
||
製品の説明

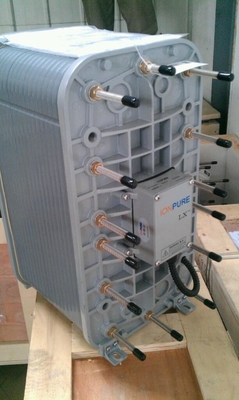

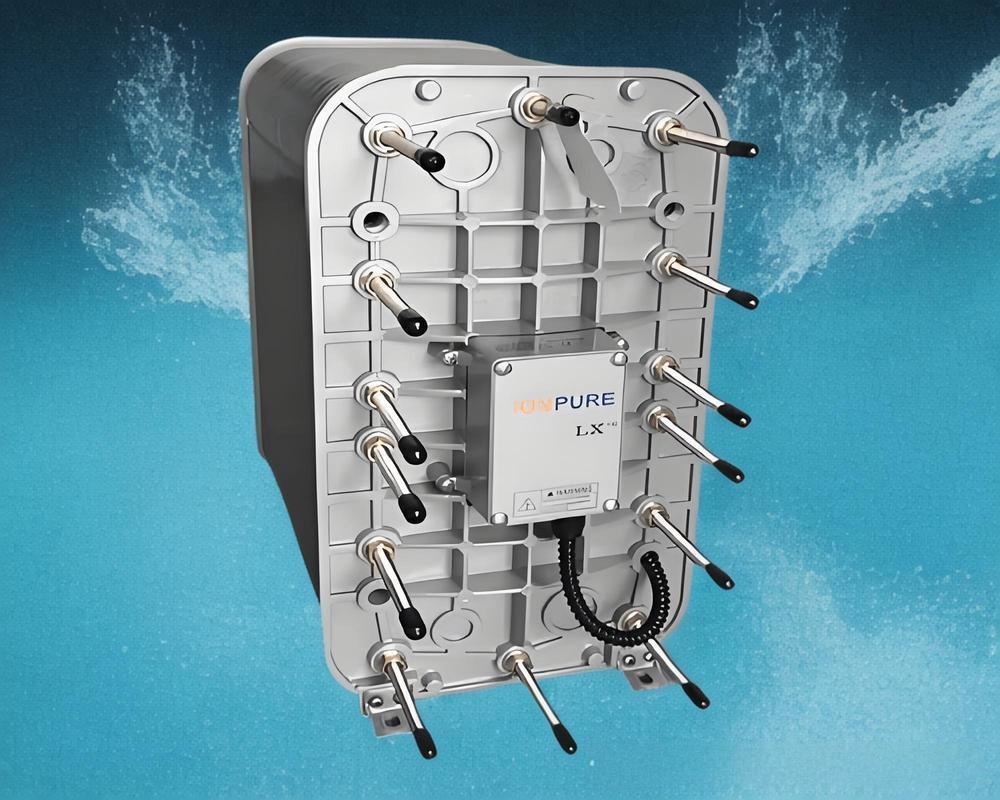

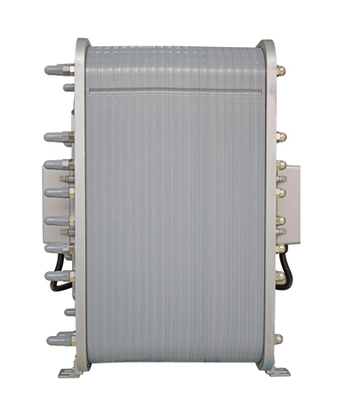

Good Water Quality Ionpure CEDI LX-Z IP-LXM24Z-5 For Biopharmaceutical Industry
Product Overview
The Ionpure LX-Z is an industrial CEDI module designed for high-purity water production in the biopharmaceutical industry, offering superior water quality with low operating costs.
Key Features
- Excellent electrical insulation performance
- Double O-ring seal ensures leak-free operation
- Significantly lower operating costs than traditional ion exchange
- No acid, alkali, or neutralization system required
- Continuous operation at 7bar (100psi), 45°C (113°F)
- Patented "full-filled" concentrate chamber design
- Produces water quality equal to or better than mixed bed systems
- Continuous water production with stable quality
Technical Specifications
| Attribute | Value |
|---|---|
| Minimum Flow Rate (m³/hr/gpm) | 1.36 (6.0) |
| Design Flow Rate (m³/hr/gpm) | 2.8-4.2 (12.5-18.8) |
| Shipping Weight (kg/lbs) | 115 (254) |
| Operating Weight (kg/lbs) | 92 (103) |
| Recovery Rate | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
Module Components
The EDI membrane block removes ions through built-in ion exchange resin, consisting of:
- Pure water chamber - Mixed resin layer between anion and cation exchange membranes
- Concentrated water chamber - Working interlayer between pure water chambers
- Electrode plates - Generate electric field during operation
Applications
- Solar photovoltaic industry
- Electronics manufacturing
- Biopharmaceutical production
- Chemical processing
- Conventional industrial applications
- Power industry
Quality Assurance
CE mark certified, manufactured under ISO 9001 and ISO 14000 standards with strict factory testing.
Operating Environment
Install indoors away from direct sunlight with ambient temperature not exceeding 45°C (113°F) for optimal performance and longevity.
Performance Data
Recovery: 90-95%
DC Voltage: 0-400
DC Amperage: 1.0-6.0
Product Resistivity: Minimum Flow > 17 MW-cm*†, Maximum Flow > 7 MW-cm*†
Silica (SiO2) Removal: 90-99%
Feed Water Specifications
| Parameter | Specification |
|---|---|
| Conductivity | < 40 μS/cm |
| Temperature | 5-45°C (41-113°F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Total Chlorine | < 0.05 ppm |
| pH | 4-11 |
About FG Water Technologies
A high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment, serving various industrial sectors worldwide.
For more information, visit: www.fgwater.com
