DuPont™ AmberLite™ HPR1200 Na Uniform Particle Size, Gel, Strong Acid Cation Ion Exchange Resin
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Dupont |
| 証明: | ISO9001 |
| モデル番号: | Dupont™Amberlite™HPR1200 NA |
| ドキュメント: | IER-AmberLite-HPR1200-Na-PD...en.pdf |
お支払配送条件:
| 最小注文数量: | 1pc |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 月額60000ユニット |
|
詳細情報 |
|||
| 特徴: | 均一な粒子サイズ、ゲル、強酸カチオンイオン交換樹脂 | 互換性のあるシステム設計: | 共電流システム、カウンター電流 /ホールドダウンシステム、パックベッド、混合ベッド |
|---|---|---|---|
| 歴史的参照: | 以前はDowex Marathon™1200 Naイオン交換樹脂として販売されていました。 | アプリケーション: | 産業用水軟化、脱灰（ナトリウム型樹脂が指定されている場合） |
| 基: | 硫酸 | イオン形式（出荷時）: | na⁺ |
| 総交換容量: | ≥2.0eq/l（na⁺form） | 水を保持する能力: | 43.0 - 50.0％（na⁺form） |
製品の説明
1. Product Overview
DuPont™ AmberLite™ HPR1200 Na is a uniform particle size, gel-type, strong acid cation exchange resin designed for industrial softening applications requiring high performance and cost-effective operation. Its optimized chemical properties and particle size ensure excellent operating capacity and rinse characteristics while reducing chemical regenerant and rinse water consumption. Compatible with all system technologies, it is also suitable for demineralization when the sodium form is preferred.
2. Applications
-
Industrial water softening
-
Demineralization (when sodium-form resin is specified)
3. Compatible System Designs
-
Co-current systems
-
Counter-current / hold-down systems
-
Packed beds
-
Mixed beds
4. Historical Reference
Previously sold as DOWEX MARATHON™ 1200 Na Ion Exchange Resin.
5. Typical Properties
Physical Properties
| Property | Specification |
|---|---|
| Copolymer | Styrene-divinylbenzene |
| Matrix | Gel |
| Type | Strong acid cation |
| Functional Group | Sulfonic acid |

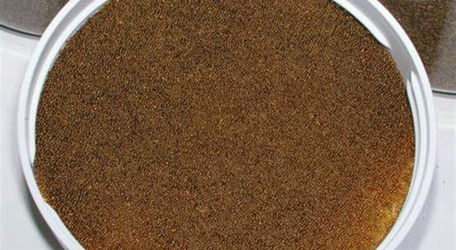

| Physical Form | Dark brown translucent spherical beads |
Chemical Properties
| Property | Specification |
|---|---|
| Ionic Form (as shipped) | Na⁺ |
| Total Exchange Capacity | ≥ 2.0 eq/L (Na⁺ form) |
| Water Retention Capacity | 43.0 – 50.0% (Na⁺ form) |
Particle Size Distribution
| Parameter | Specification |
|---|---|
| Particle Diameter | 585 ± 50 μm |
| Uniformity Coefficient | ≤ 1.10 |
| < 300 μm | ≤ 0.1% |
| > 850 μm | ≤ 3.0% |
ℹ For additional particle size information, refer to Document No. 45-D00954-en.
Stability
-
Whole Uncracked Beads: ≥ 95%
-
Swelling:
-
Ca²⁺ → Na⁺: 5%
-
Na⁺ → H⁺: 8%
-
Density
-
Particle Density: 1.29 g/mL
-
Shipping Weight: 820 g/L
6. Operating Conditions
-
Temperature Range (Na⁺ form): 5 – 150°C (41 – 302°F)
-
pH Range:
-
Service Cycle: 1 – 14
-
Stable: 0 – 14
-
⚠ For detailed information on minimum bed depth, operating conditions, and regeneration procedures, refer to:
Mixed Beds (Document No. 45-D01127-en)
Separate Beds (Document No. 45-D01131-en)
7. Hydraulic Characteristics
-
Backwash Expansion: Estimated bed expansion as a function of backwash flow rate and temperature is shown in Figure 1.
-
Pressure Drop: Estimated pressure drop as a function of service flow rate and temperature is shown in Figure 2 (valid for clean water at service run start).
(Note: Refer to original document for graphical data.)
8. Safety & Compliance
-
Warning: Strong oxidizing agents (e.g., nitric acid) may degrade the resin or cause violent reactions. Consult experts before use.
-
Users should review safety data sheets (SDS) and ensure compliance with local regulations.
