製品の説明

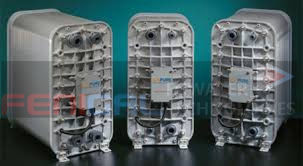

Ionpure CEDI LX-Z IP-LXM04Z-5 is a cutting-edge Continuous Electrodeionization (CEDI) module tailored for medical ultrapure water generation. It integrates ion exchange resins and electrochemical technology, eliminating the need for chemical regeneration. Designed to meet strict healthcare purity standards, this module delivers consistent, high-quality water, critical for sensitive medical processes, and stands out as a reliable choice for medical facilities prioritizing efficiency and compliance.
The module is manufactured with a robust ion-exchange membrane stack and high-performance resins. Its working process combines ion exchange and electrolysis: feedwater (pre-treated by reverse osmosis) flows through the module. Under an electric field, ions are migrated from the water stream to concentrate channels, while pure water is collected. No chemical regenerants are used, ensuring zero contamination risk and reducing operational complexity, ideal for medical environments.
Its core use is medical ultrapure water production, supporting applications like pharmaceutical compounding, medical device cleaning/sterilization, clinical laboratory testing, and dialysis water preparation. It ensures water meets USP, EP, and FDA standards, preventing ionic or microbial contamination that could compromise patient safety or medical product quality.
The following are the detailed specifications of the Ionpure CEDI LX-Z IP-LXM04Z-5:
|
Parameter |
Value |
|
Product Model |
Ionpure CEDI LX-Z IP-LXM04Z-5 |
|
Water Production Rate |
~4 m³/h (typical) |
|
Outlet Water Resistivity |
≥18.2 MΩ·cm (at 25°C) |
|
Silica Removal Rate |
≥99.5% |
|
Max Operating Pressure |
6.9 bar (100 psi) |
|
Operating Temperature |
5–45°C |
|
Power Consumption |
~0.3–0.5 kWh/m³ |
The Ionpure CEDI LX-Z IP-LXM04Z-5 boasts several key advantages. Chemical-Free Operation: No regenerants are used, avoiding water contamination and reducing waste generation. High Purity Consistency: It delivers stable 18.2 MΩ·cm water, fully meeting strict medical standards for ultrapure water. Low Maintenance: With durable components and no need for resin replacement, it minimizes downtime and operational hassle. Eco-Friendly & Cost-Saving: It reduces chemical storage and disposal costs while lowering the carbon footprint, perfectly aligning with the sustainability goals of modern medical facilities.
