詳細情報 |
|||
| MK-5希釈出口と濃縮インレット（BAR）の間の最小圧力差：: | 0.34 | MK-5希釈入口/アウトレット標準圧力ドロップ（BAR）：: | 1.4-2.8 |
|---|---|---|---|
| MK-5入口圧（バー）：: | カウンター電流：4.1-6.9 Co-Current：3.1-6.9 | MK-5アンペラージ（ADC）：: | 0-5.2 |
| MK-5電圧（VDC）：: | 0-400 | MK-5回復：: | 最大97％ |
| 設計水生産（M3 /HR）MK-5：: | 4.0-6.4 | MK-5公称フロー：: | 5.0 m3/h（22 gpm） |
| MK-5アプリケーション：: | 発電所のボイラー給水 | ハイライト：: | Veolia MK-5半導体用のEDIモジュール、産業用スエズEDIスタック、e-cell-3x置換EDIモジュール |
| ハイライト: | Veolia MK-5 EDI module medical industry,EDI module high-purity water solution,Veolia E-CELL-3X replacement EDI module |
||
製品の説明

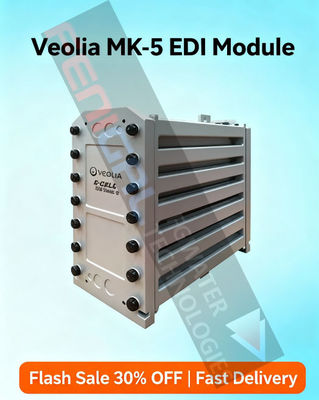

The Veolia MK-5 EDI Module (Previously E-CELL-3X) is a cutting-edge electronic deionization (EDI) system designed to deliver ultra-pure water, critical for precision-dependent sectors like healthcare. As a successor to the trusted E-CELL-3X, this module integrates advanced ion-exchange technology with electric field-driven purification, eliminating the need for chemical regeneration and ensuring consistent, contaminant-free water output.
Core Technology & Process
Leveraging aAgainst the current (counterflow) operation design, the Veolia MK-5 EDI Module efficiently removes ions, organic matter, and microorganisms from feedwater. It combines semipermeable membranes and ion-exchange resins, where an electric field accelerates ion migration—resulting in water purity exceeding 99.9% desalination rate. This chemical-free process reduces environmental impact while maintaining stable performance even in highIncoming water hardness (feedwater hardness) conditions, minimizing cleaning frequency and downtime.
Medical Industry Applications
In healthcare, the module is indispensable for:
• Medical device sterilization: Providing pyrogen-free water for autoclaves and surgical instrument cleaning.
• Pharmaceutical production: Meeting USP/EP standards for drug formulation and API manufacturing.
• Laboratory diagnostics: Ensuring accurate results in clinical tests and molecular biology research.
Specifications Table
|
Parameter |
Value |
|
Rated Flow Rate |
5.0 m³/h (22 gpm) |
|
Flow Range |
2.3 – 6.4 m³/h (10–28 gpm) |
|
Max Operating Pressure |
0.6 MPa |
|
Desalination Rate |
≥99.9% |
|
Certifications |
CE, RoHS compliant |
Competitive Advantages
• Energy Efficiency: Low power consumption and no brine injection reduce operational costs by 30% vs. traditional DI systems.
• Reliability: Counterflow design enhances durability, ideal for 24/7 medical facility operations.
• Regulatory Compliance: Aligns with global healthcare standards, supporting seamless audits.
For medical facilities prioritizing purity, efficiency, and compliance, the Veolia MK-5 EDI Module (Previously E-CELL-3X) sets the benchmark for ultra-pure water solutions.
