詳細情報 |
|||
| 装置の最小流量 m3/hr (gpm): | 0.22 (1.0) | 装置設計流量 m3/hr (gpm): | 0.44-0.67 (2.0-3.0) |
|---|---|---|---|
| 機器の出荷重量 kg (ポンド)**: | 59 (130) | 機器の動作重量 kg (ポンド): | 31 (69) |
| 機器の回収: | 90〜95％ | 機器の利点: | 広範囲の流量,低運用コスト,0.05ppmまで (総IC2) |
| 機器の直流電圧: | 0–400 | 機器のDCアンペア数: | 1.0–6.0 |
製品の説明

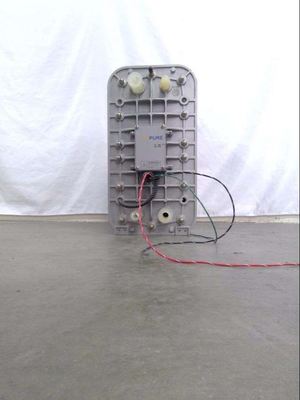

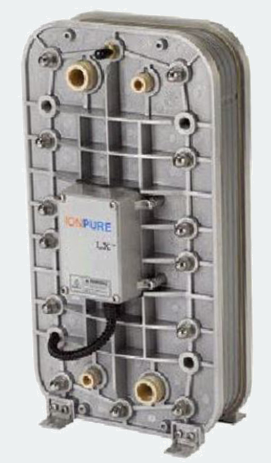

Ionpure CEDI LX-Z IP-LXM04Z-5 Compact Chemical-Free EDI Module For Industrial Pure Water
Ionpure LX-Z — Industrial CEDI Module
Engineered for non-stop operation, the Ionpure LX-Z IP-LXM04Z-5 module provides a reliable and efficient source of high-purity water. Its double O-ring seal design and robust construction guarantee leak-free performance, while its chemical-free process ensures safe and continuous production for power plants and chemical processing industries, maximizing uptime and productivity.
LX-Z Series Features
• Wide range of ffow from 0.22 m3/h (1 gpm) to 10m3/h (44 gpm) per module
• Signiffcantly lower operating costs than conventional ion exchange
• Generates mixed-bed quality deionized water without the use of chemicals
• Continuous production instead of batch, with consistent quality
• Double O-ring seal guarantees* leak-free operation
• No need for acid/caustic, neutralization system or exchangable DI tanks
• Resin fflled concentrate for optimal performance and ease of operation
• Continuous operation
• Up to 0.05 ppm (total CI 2) feed
• Wetted materials of construction comply with NSF® 14 and NSF® 61 requirements
QUALITY ASSURANCE STANDARDS
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
