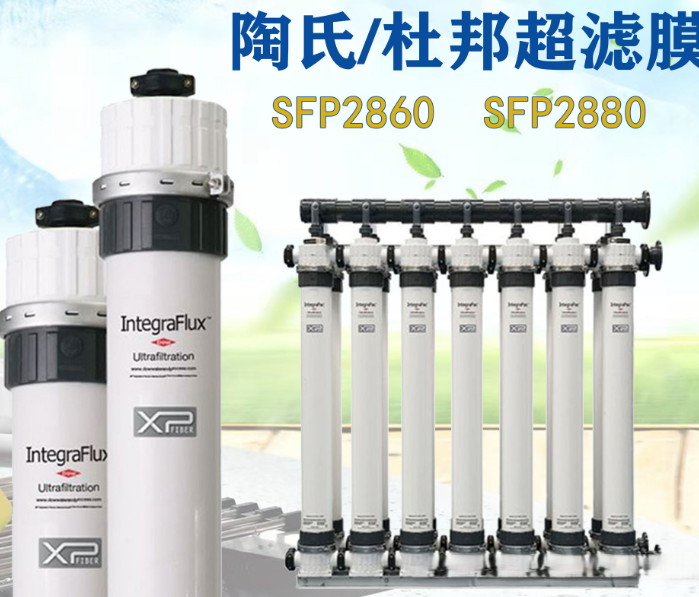

Dupont PVDF Ultrafiltration Membrane Model SFP-2880 For Drinking Water And High-quality Water Applications.
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Dupont |
| 証明: | CE |
| モデル番号: | SFP-2880 |
| ドキュメント: | UF-IntegraTec-P-Series-PVDF...en.pdf |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 供給の能力: | 月額60000ユニット |
|
詳細情報 |
|||
| SFP-2880の膜流量: | 3.1 - 9.3 m3 /hr | SFP-2880膜領域: | 77m² |
|---|---|---|---|
| SFP-2880 膜公称孔径: | 0.03 µm | 核膜材料: | PVDF |
| SFP-2880 濾液フラックス: | 40-120 | SFP-2880の直径: | 8インチ |
| フロー方向設定: | 外部圧力構造、行き止まりのろ過 | SFP-2880最大TMPの動作: | 2.1バー |
| 最大入口モジュール圧: | 6.25バー | メムランの動作pH: | 2-11 |
| フロー構成: | 外側、行き止まりの流れ | 主要な認定: | ISO 9001、NSF、CE |
| 中心の適用: | 飲料水および高品質の水の用途 | このモジュールの利点: | 非常に高い孔隙度,大きな流量 |
製品の説明
Dupont PVDF Ultrafiltration Membrane Model SFP-2880 For Drinking Water And High-quality Water Applications.
Why More Industrial Plants Choose DuPont UF Before RO
From process water to cooling and boiler makeup, DuPont ultrafiltration membranes help stabilize RO performance and reduce long-term operating costs.
Features
The SFD2880 is a pressure-type PVDF ultrafiltration membrane model optimized for drinking water and high-quality water applications.
1. Membrane material: PVDF
2. Nominal pore size: approximately 0.03 μm
3. Effective membrane area per module: approximately 75–80 m² (slight variations may occur between different batches and versions)
4. Typical operating flux range: approximately 40–115 LMH
5. Primarily used for municipal drinking water, advanced reclaimed water treatment, and projects with high requirements for effluent stability.
6. This model emphasizes highly efficient removal of pathogens, colloids, and turbidity.
Product Specifications
Figure 1: SFP and SFD 2880 (8-inch diameter)
Operating Parameters
Ensuring that the UF system is properly started is critical to preparing the membrane for operation and preventing potential membrane damage. Following the correct startup sequence is essential to maintaining system parameters within design specifications, helping to achieve water quality and productivity goals.
Before beginning the startup procedure, membrane preconditioning, membrane module installation, instrumentation calibration, and system checks must be completed per the guidelines outlined in the product technical manual.
To prevent membrane damage, sudden pressure changes during startup, shutdown, cleaning, or other sequences should be avoided. Before startup, flush the UF system thoroughly to eliminate any remaining shipping solution. In addition, purge any residual air from the system before commencing operation.
Start the unit manually, with the goal of achieving an initial permeate flow rate of 60% of the design capacity. Depending on the application, it may be necessary to discard the permeate obtained during initial operation. Refer to the product technical manual for detailed instructions.
General information
If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty (Form No. 795-00027) will be null and void.
To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
Regulatory note NSF/ANSI 61 certified drinking water modules require specific conditioning procedures prior to producing potable water. Please refer to the product technical manual flushing section for specific procedures. Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use and sale.
MODULE INSTALLATION
For application cases, please click:https://www.fgwater.com/Industries/
