詳細情報 |
|||
| XP 51 IG 濾過モード: | 加圧された | XP 51 IG 膜タイプ: | 中空繊維 |
|---|---|---|---|
| XP 51 IG膜材料: | PVDF (ポリビニリデンフッ化物) | XP 51 Ig膜細孔サイズ: | 約0.03 µm |
| モジュール動作プロセス: | 行き止まり | その他のウェットモジュールコンポーネント: | ポリウレタン、ポリエチレン、およびポリアミド |
| XP 51 Ig活性膜領域: | 51m² | XP 51 IG出荷重量: | 60 kg |
| XP 51 IG 重量が空: | 48 kg | 重量が満たされています: | 83 kg |
| 製品の適用: | 廃水処理 | XP 51 IG の利点: | 高さまたはスペースが限られたシステム設計に適しています |
製品の説明

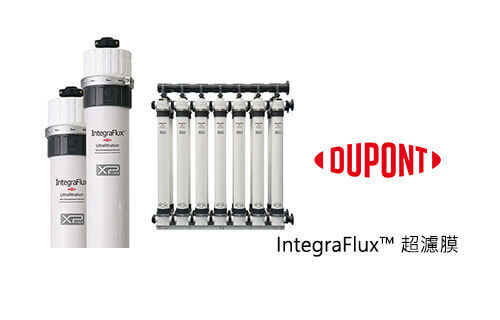

Dupont UF Membranes IntegraTec™ XP 51 IG For System Designs With Limited Height Or Space
The XP 51 is a compact model in the XP series, suitable for systems with limited height or space.
1. Membrane material: PVDF
2. Nominal pore size: approximately 0.03 μm
3. Effective membrane area per module: approximately 51 m²
4. Module diameter: approximately 203 mm (8 inches), length: approximately 1520 mm (60 inches)
5. Typical operating flux is similar to the SFP2860, typically in the range of 40–110 LMH
6. Primarily used in containerized water treatment systems, small industrial RO pretreatment units, and modular equipment.
7. This model's advantage lies in its flexible system integration, suitable for standardized export equipment and customized skids.
Key Features Proven XP™ hydrophilic PVDF fibers:
• Excellent stain and chlorine resistance.
• High removal of colloidal particles, bacteria and viruses.
• Excellent filter permeability.
• Easy to clean and wet.
Optimized module design: Open platform design to fit customer-built skids.
• Short module design for height-restricted or containerized installations.
• High operating recovery rate with high air scour tolerance.
• Reduced chemical consumption through maintenance cleaning protocols.
• Rugged materials for long service life.
• Easy installation and low maintenance costs.
Product Specifications
Operating Parameters
