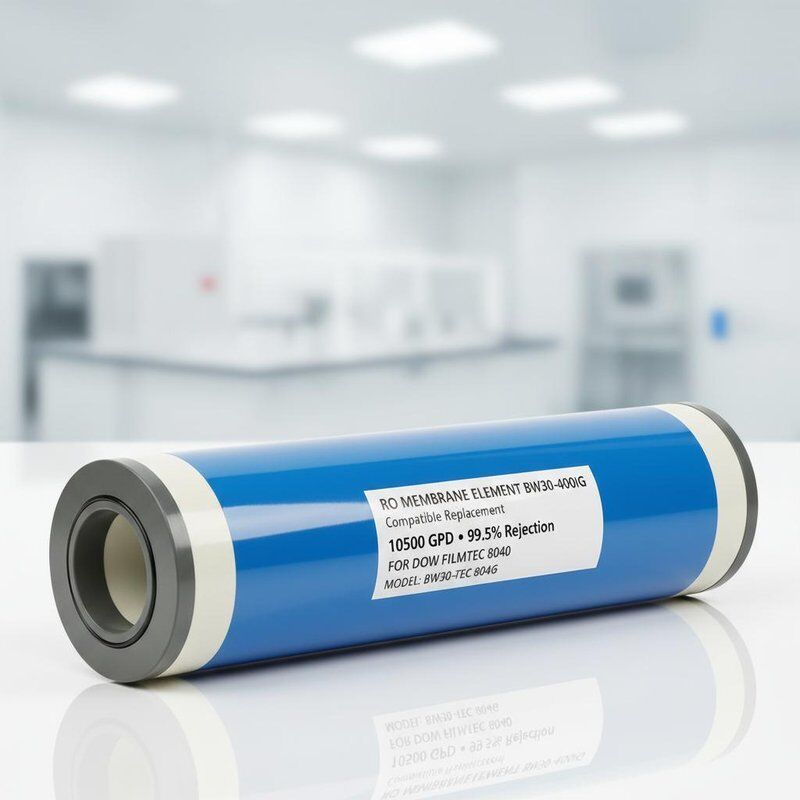

BW30-400IG Compatible RO Membrane Element 8040 OEM Replacement with 10500 GPD Flow and 99.5% Rejection Polyamide Thin-Film Composite
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | FILTERPRO |
| 証明: | ISO 9001:2015 |
| モデル番号: | BW30-400IG-C |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | USD 180-280 / Piece |
| パッケージの詳細: | 輸出グレードのカートンに乾燥剤を入れて真空密封した個別包装、パレットも利用可能 |
| 受渡し時間: | 在庫に3〜5営業日、生産に15〜20日 |
| 支払条件: | T/T,L/C,PayPal,ウェスタンユニオン |
| 供給の能力: | 月あたり5000個 |
|
詳細情報 |
|||
| 膜エレメントのサイズ: | 8040 (8インチ×40インチ) | 活性膜領域: | 400 フィート平方 (37 平方メートル) |
|---|---|---|---|
| 浸透流量: | 10500 GPD (39.7 m3/日) | 安定した塩分除去率: | 99.5% |
| 使用圧力: | 225 PSI (15.5 バール) | 膜材質: | ポリアミド薄膜複合材料 |
| と互換性があります: | ダウフィルムテック BW30-400IG | 飼料水 Tds: | ≤ 2000ppm |
| Ph 範囲: | 2-11 | ||
| ハイライト: | OEM Compatible RO Replacement,DOW FILMTEC BW30 Alternative,8040 Brackish Water Membrane |
||
製品の説明
BW30-400IG Compatible RO Membrane Element 8040 OEM Replacement for DOW FILMTEC 10500 GPD 99.5% Rejection
Product Overview
The FILTERPRO BW30-400IG-C is a high-performance OEM compatible reverse osmosis membrane element engineered as a direct drop-in replacement for DOW FILMTEC BW30-400IG. It delivers consistent, reliable brackish water desalination at a competitive price point, making it the ideal choice for system operators seeking to reduce maintenance costs without compromising water quality.
Key Features
- Direct OEM Compatibility: Designed to the same form factor and performance specifications as the original DOW FILMTEC BW30-400IG, ensuring seamless integration into existing 8040 membrane housings and RO skids.
- High Permeate Flow: Produces up to 10,500 GPD (39.7 m³/day) of purified water under standard test conditions, meeting the demands of medium to large-scale industrial RO plants.
- Stable Salt Rejection: Achieves and maintains 99.5% salt rejection over the membrane's service life, ensuring consistent product water quality.
- Industrial-Grade Construction: Polyamide thin-film composite (TFC) membrane with fiberglass outer wrap for mechanical strength and durability in demanding operating environments.
- Cost-Effective Alternative: Delivers comparable performance to branded OEM membranes at 30-50% lower cost, reducing total cost of ownership for water treatment facilities.
Technical Specifications
| Parameter | Value |
|---|---|
| Membrane Element Size | 8040 (8" x 40") |
| Active Membrane Area | 400 ft² (37 m²) |
| Permeate Flow Rate | 10,500 GPD (39.7 m³/day) |
| Stable Salt Rejection | 99.5% |
| Operating Pressure | 225 PSI (15.5 bar) |
| Membrane Material | Polyamide Thin-Film Composite |
| Feed Water TDS | ≤ 2,000 ppm |
| pH Range (Operating) | 2-11 |
| Max Operating Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Applications
- Industrial brackish water reverse osmosis systems
- Power generation facilities
- Food and beverage processing
- Pharmaceutical manufacturing
- Municipal drinking water treatment
Compatible with all standard 8040 membrane pressure vessels.
Packaging and Warranty
Each membrane element is vacuum sealed in a heavy-duty polyethylene bag with food-grade preservative solution, packed in an export-grade corrugated carton, and includes a desiccant pouch. Standard warranty: 12 months from date of shipment under normal operating conditions.
