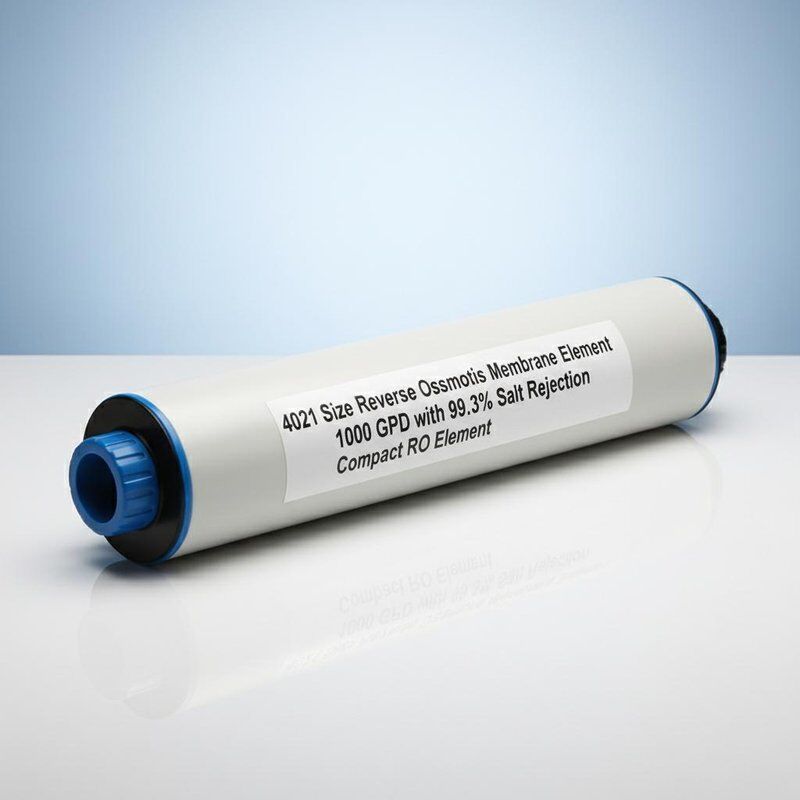

4021 Size Reverse Osmosis Membrane Element 1000 GPD with 99.3% Salt Rejection Compact RO Element
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | FILTERPRO |
| 証明: | ISO 9001:2015 |
| モデル番号: | FP-4021-RO |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | USD 35-75 / Piece |
| パッケージの詳細: | 保存液を入れた保護カートンに真空密封された個別包装 |
| 受渡し時間: | 在庫に2〜3営業日、生産に10〜15日 |
| 支払条件: | T/T,L/C,PayPal,ウェスタンユニオン |
| 供給の能力: | 月あたり15000個 |
|
詳細情報 |
|||
| 膜エレメントのサイズ: | 4021 (4 インチ x 21 インチ) | 活性膜領域: | 36 フィート平方 (3.3 平方メートル) |
|---|---|---|---|
| 浸透流量: | 1000 GPD (3.8 m3/日) | 安定した塩分除去率: | 99.3% |
| 使用圧力: | 150 PSI (10.3 バール) | 膜材質: | ポリアミド薄膜複合材料 |
| 透過管の直径: | 0.75インチ | フード・スペーサー厚さ: | 28 ミリ |
| Ph 範囲: | 2-11 | ||
| ハイライト: | 4021 Compact RO Membrane,1000 GPD Industrial Element,4x21 Inch Reverse Osmosis |
||
製品の説明
The FP-4021-RO is a compact 4021 size reverse osmosis membrane element (4-inch diameter x 21-inch length) engineered for applications where space is at a premium without sacrificing filtration performance. Delivering 1000 GPD of purified water with 99.3% salt rejection, this half-length element is the perfect choice for portable, laboratory, and small-scale industrial RO systems.
- Compact 4021 Form Factor: Half the length of a standard 4040 element, the 4021 size fits into tight spaces and lightweight mobile RO units. Ideal for systems where equipment footprint is a critical design constraint.
- 1000 GPD Industry Standard Output: Meets the most common flow requirement for small RO systems including laboratory water purifiers, dental clinic RO units, and portable field water treatment equipment.
- 99.3% Reliable Salt Rejection: Polyamide thin-film composite membrane delivers consistent desalination performance for brackish water with feed TDS up to 2000 ppm.
- Lightweight Design: At approximately 2.5 kg per element, the 4021 form factor enables easy handling, installation, and replacement by a single technician.
- Universal Compatibility: Fits all standard 4021 membrane housings with 0.75-inch permeate tube connection, ensuring broad compatibility with existing systems from multiple manufacturers.
| Parameter | Value |
|---|---|
| Membrane Element Size | 4021 (4" x 21") |
| Active Membrane Area | 36 ft² (3.3 m²) |
| Permeate Flow Rate | 1,000 GPD (3.8 m³/day) |
| Stable Salt Rejection | 99.3% |
| Operating Pressure | 150 PSI (10.3 bar) |
| Max Operating Pressure | 300 PSI (20.7 bar) |
| Membrane Material | Polyamide TFC |
| Permeate Tube Diameter | 0.75" (19 mm) |
| Feed Spacer Thickness | 28 mil |
| pH Range (Continuous) | 2-11 |
| Max Feed Temperature | 45°C (113°F) |
| Element Weight (Wet) | Approx. 2.5 kg |
Designed for laboratory water purification systems (Type II/III water), dental and medical clinic RO units, portable field water treatment equipment for military and disaster relief, small commercial ice makers and coffee machines, and vehicle-mounted or shipboard water purification systems. Also suitable for pilot-scale industrial RO testing and process development.
