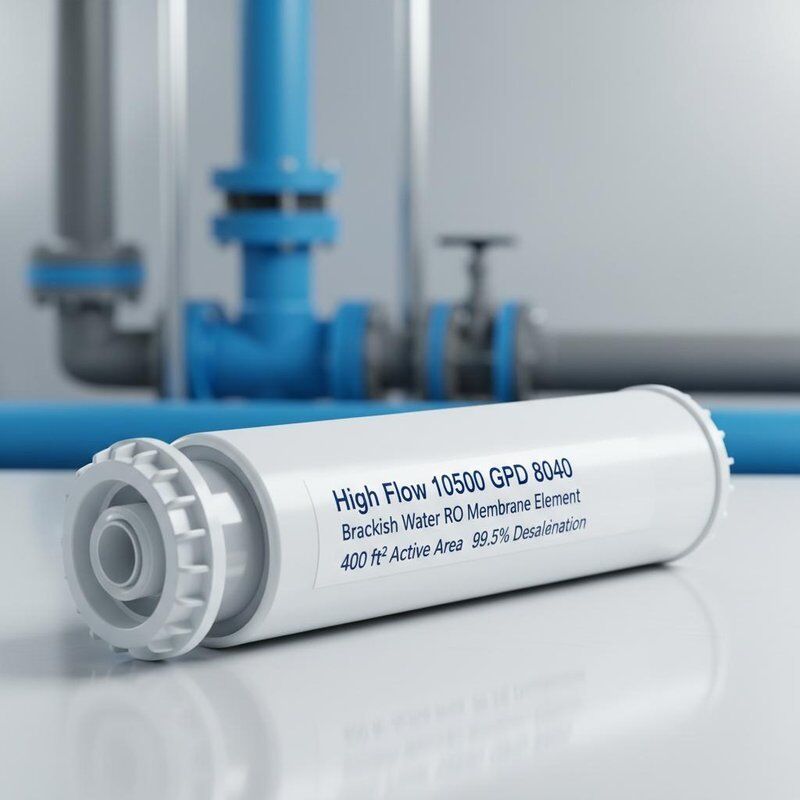

High Flow 10500 GPD 8040 Brackish Water RO Membrane Element with 400 ft² Active Area and 99.5% Desalination
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | FILTERPRO |
| 証明: | ISO 9001:2015 |
| モデル番号: | FP-8040-HF |
お支払配送条件:
| 最小注文数量: | 1個 |
|---|---|
| 価格: | USD 200-320 / Piece |
| パッケージの詳細: | 真空密封された耐久性の高い PE バッグ、乾燥剤付きの輸出グレードのカートンに入っており、パレット輸送が可能 |
| 受渡し時間: | 在庫に3〜5営業日、生産に15〜25日 |
| 支払条件: | T/T,L/C,PayPal,ウェスタンユニオン |
| 供給の能力: | 1ヶ月あたりの8000部分 |
|
詳細情報 |
|||
| 膜エレメントのサイズ: | 8040 (8インチ×40インチ) | 活性膜領域: | 400 フィート平方 (37 平方メートル) |
|---|---|---|---|
| 浸透流量: | 10500 GPD (39.7 m3/日) | 安定した塩分除去率: | 99.5% |
| 使用圧力: | 225 PSI (15.5 バール) | 膜材質: | ポリアミド薄膜複合材料 |
| 飼料水 Tds: | ≤ 2000ppm | 供給流量: | 70 GPM (15.9 m3/h) |
| 濃縮流量: | 55 GPM (12.5 m3/h) | Ph 範囲: | 2-11 |
| ハイライト: | High Flow 10500 GPD RO,8040 Brackish Water Element,400ft² Industrial Grade Membrane |
||
製品の説明
The FP-8040-HF is a high-flow 8040 brackish water reverse osmosis membrane element engineered for maximum permeate production in large-scale industrial and municipal water treatment facilities. With 400 square feet of active membrane area and a rated output of 10,500 GPD (39.7 m³/day), this element delivers industry-leading throughput that reduces the total number of membrane elements required per plant — lowering capital expenditure and footprint.
- 10,500 GPD Rated Permeate Flow: Achieves 10% higher water production compared to standard 9,500 GPD 8040 membranes, enabling fewer elements per train and reduced membrane housing requirements without sacrificing permeate quality.
- 400 ft² Optimized Active Area: Advanced automated membrane leaf rolling technology maximizes the active surface area within the standard 8040 envelope, achieving the highest packing density in its class while maintaining consistent inter-leaf spacing for uniform flow distribution.
- 99.5% Stable Salt Rejection: Polyamide thin-film composite membrane chemistry delivers reliable desalination performance with less than 0.1% rejection decline per year under normal operating conditions, ensuring predictable long-term water quality.
- Industrial-Grade Construction: Heavy-duty fiberglass outer wrap, ATD (automated tape dispensing) brine seal, and precision-machined permeate tube connections ensure reliable performance in demanding 24/7 industrial environments.
- Reduced System Footprint: For a 500,000 GPD RO plant, using FP-8040-HF elements reduces the required element count from 53 to 48 vs. standard 9,500 GPD membranes, saving one full pressure vessel and associated plumbing.
| Parameter | Value |
|---|---|
| Membrane Element Size | 8040 (8" x 40") |
| Active Membrane Area | 400 ft² (37 m²) |
| Permeate Flow Rate | 10,500 GPD (39.7 m³/day) |
| Stable Salt Rejection | 99.5% |
| Operating Pressure | 225 PSI (15.5 bar) |
| Max Operating Pressure | 600 PSI (41.4 bar) |
| Membrane Material | Polyamide TFC |
| Feed Flow Rate Range | 35-75 GPM (8-17 m³/h) |
| Max Feed SDI (15 min) | ≤ 5 |
| pH Range (Continuous) | 2-11 |
| pH Range (Cleaning, 30 min) | 1-13 |
| Max Feed Temperature | 45°C (113°F) |
| Free Chlorine Tolerance | < 0.1 ppm |
Designed for municipal drinking water plants (500,000-5,000,000 GPD capacity), industrial process water for power generation and semiconductor manufacturing, boiler feed water production, food and beverage ingredient water, and large-scale bottled water production facilities. Compatible with all standard 8-inch multi-element pressure vessels from major manufacturers.
Our engineering team provides complimentary RO system design review including array configuration optimization, permeate staging calculation, and projected membrane performance modeling using industry-standard projection software. Contact us with your feed water analysis for a customized system recommendation.
