4040 Brackish Water Reverse Osmosis Membrane Element 2500 GPD 99.5% Salt Rejection Industrial RO Filtration
商品の詳細:
| 起源の場所: | 浙江省、中国 |
| ブランド名: | Fenigal/OEM |
| 証明: | NSF/ANSI 58, ISO 9001:2015 |
| モデル番号: | BW-4040-2500 |
お支払配送条件:
| 最小注文数量: | 5個 |
|---|---|
| 価格: | USD 120-180 / Piece |
| パッケージの詳細: | 個別に真空密封された PE バッグ、強化された輸出カートン、防湿層でパレット化 |
| 受渡し時間: | 在庫に3〜5営業日、生産に15〜20日 |
| 支払条件: | T/T、L/C、Western Union、PayPal |
| 供給の能力: | 1 か月あたり 10,000 個 |
|
詳細情報 |
|||
| 膜サイズ: | 4040 (4.0 インチ x 40 インチ) | 膜材質: | TFC ポリアミド |
|---|---|---|---|
| 浸透流量: | 2500 GPD (9.5 m3/日) | 塩の拒絶率: | ≥ 99.5% |
| アクティブエリア: | 85 フィート平方 (7.9 平方メートル) | フィード スペーサー: | 28ミル（0.71mm） |
| 試験圧力: | 150PSI | Ph 範囲: | 2-11 連続 |
| ハイライト: | 4040 brackish water RO membrane,2500 GPD reverse osmosis element,industrial RO filtration membrane |
||
製品の説明

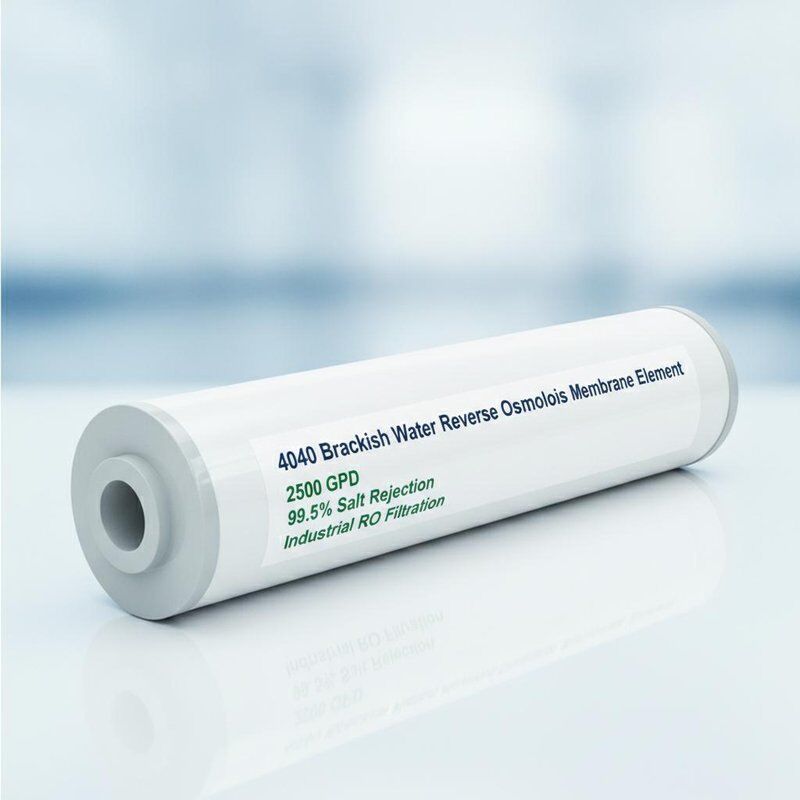

4040 Brackish Water Reverse Osmosis Membrane Element
Our 4040 brackish water RO membrane element delivers 2500 GPD permeate flow with a 99.5% minimum NaCl rejection rate. Designed with advanced thin-film composite (TFC) polyamide membrane technology, this element ensures reliable and consistent desalination performance for industrial and commercial water treatment systems.
Key Features
- High salt rejection rate exceeding 99.5% for NaCl
- 2500 GPD (9.5 m³/day) nominal permeate flow
- Thin-film composite (TFC) polyamide membrane material
- Low fouling design with wide pH tolerance range
- Standard 4040 form factor interchangeable with major brands
- Operating pressure as low as 150 psi for energy efficiency
- Food-grade materials compliant with NSF standards
- Individually vacuum sealed and tested before shipment
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Size | 4040 (4.0" x 40") |
| Membrane Type | Thin-Film Composite (TFC) Polyamide |
| Permeate Flow Rate | 2500 GPD (9.5 m³/day) |
| Minimum Salt Rejection | 99.5% (NaCl) |
| Active Membrane Area | 85 ft² (7.9 m²) |
| Feed Spacer Thickness | 28 mil (0.71mm) |
| Operating Pressure | 150 psi (1.03 MPa) |
| Maximum Operating Pressure | 600 psi (4.14 MPa) |
| Maximum Feed Flow Rate | 16 GPM (3.6 m³/h) |
| pH Operating Range | 2-11 (continuous), 1-13 (cleaning) |
| Maximum Feed SDI | SDI 5 |
| Free Chlorine Tolerance | < 0.1 ppm |
Applications
- Industrial brackish water desalination
- Commercial RO drinking water systems
- Boiler feed water preparation
- Electronics manufacturing ultrapure water
- Food and beverage process water
- Pharmaceutical water purification systems
Each element individually vacuum-sealed in food-grade polyethylene bag, packed in reinforced export carton. OEM branding available. Compatible with DOW Filmtec, Hydranautics, Toray, CSM, and Vontron 4040 housings.
