DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment

DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment

商品の詳細:

Place of Origin: China
ブランド名: Dupont
証明: CE
Model Number: IntegraTec™ XP 77 IG (formerly SFP 2880XP)

お支払配送条件:

Minimum Order Quantity: 1 pc
価格: 交渉可能
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Supply Ability: 60000 Units per Month
ベストプライス 連絡先

詳細情報

Effective membrane area: 8 inch Flow rate per module: 2.0–8.5 m³/hr (8.8–37.6 gpm)
Max feed pressure: 6.25 bar (90.65 psi) at 20°C Flow Range Per Module: 2.0 – 8.5 m³/hr
Nominal pore diameter of XP 77 IG: 0.03 µm Max backwash pressure: 2.5 bar (36 psi)
Max. operating TMP of this Module: 2.1 bar Max operating air scour flow of this Module: 12 nm3/hr
NaOCl (max.)of this Module: 2,000 mg/L Certifications: ISO 9001, NSF, CE
Application: Pharma and Beverage Advantages: High performance filtration solutions
ハイライト:

DuPont IntegraTec XP 77 membrane

,

PVDF membrane for water treatment

,

industrial water treatment UF membrane

製品の説明

DuPont IntegraTec XP 77 IG High-Flux PVDF Membrane for Large-Scale Water Treatment
Product Specifications
Attribute Value
Effective membrane area 8 inch
Flow rate per module 2.0–8.5 m³/hr (8.8–37.6 gpm)
Max feed pressure 6.25 bar (90.65 psi) at 20°C
Nominal pore diameter 0.03 µm
Max backwash pressure 2.5 bar (36 psi)
Max operating TMP 2.1 bar
Max operating air scour flow 12 nm3/hr
NaOCl (max.) 2,000 mg/L
Certifications ISO 9001, NSF, CE
Application Pharma and Beverage
Product Description

The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.

Key Features
  • Superior Filtration Efficiency
    • 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates
    • High-flux design: 35% higher permeability than previous-generation modules
  • Robust Construction & Reliability
    • PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2-11)
    • U-PVC housing: Eliminates the need for external pressure vessels
  • Optimized Operational Economics
    • Outside-in flow configuration: Tolerates feedwater with high suspended solids
    • Innovative end-cap design: Simplifies piping and saves space
DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 0
Technical Specifications
Model Type Membrane Area (m²/ft²) Module Volume (Liters/Gallons) Weight (Kg/lbs)
XP77 IG Industrial 77 / 829 39 / 10.3 61/100 (empty)
135/220 (water filled)
XP77 NSF/ANSI 61 and 419 77 / 829 39 / 10.3 61/100 (empty)
135/220 (water filled)
DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 1
Operating Parameters
Parameter SI Units US Units
Filtrate Flux @ 25ºC 40-110 l/m2/hr 24-65 gfd
Flow range 2.0 - 8.5 m3/hr 8.8 - 37.4 gpm
Temperature 1-40ºC 34-104ºF
Max. inlet module pressure (@ 20ºC) 6.25 bar 90.65 psi
Max. operating TMP 2.1 bar 30.5 psi
Max operating air scour flow 12 nm3/hr 7.1 scfm
Max backwash pressure 2.5 bar 36 psi
Operating pH 2-11
NaOCl (max.) 2,000 mg/L
Particle size (max.) 300 µm
Flow configuration Outside in, dead end flow

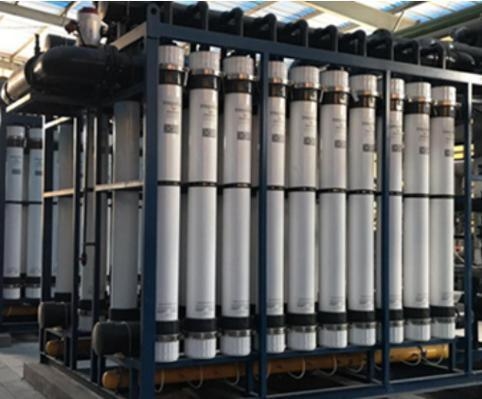

Module Installation
DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 2 DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 3 DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 4 DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 5 DuPont IntegraTec XP 77 IG PVDF Membrane for Industrial Water Treatment 6

For application cases, please visit: www.fgwater.com/Industries/

About FG Water Technologies

FG Water Technologies (www.fgwater.com) is now an organic part of Wuxi Fenigal Science and Technology Co. Ltd., which is a high-tech entity integrating water treatment equipment design, manufacturing, trading and shipment served for main industrial sectors.

Our main products include a variety of water purification and treatment equipment, such as seawater reverse osmosis (SWRO) system, brackish water reverse osmosis (BWRO), ultrafiltration (UF) system, Electrodeionization/EDI equipment, media pressure filters and ion exchanger softeners.
