DuPont™ SFP-2880 UF Module – Cost-Effective RO Pretreatment & Water Reuse
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | Dupont |
| 証明: | CE |
| モデル番号: | SFP-2880 |
| ドキュメント: | UF-IntegraTec-P-Series-PVDF...en.pdf |
お支払配送条件:
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | 、t/t |
| 供給の能力: | 月額60000ユニット |
|
詳細情報 |
|||
| コンポーネントのモジュール磁束範囲: | 40–90 LMH (24–53 gfd) at 25°C | SFP-2880のモジュール流量: | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
|---|---|---|---|
| SFP-2880のモジュール温度制限: | 1–40°C (34–104°F) | SFP-2880 のモジュール最大動作 TMP: | 2.1バー（30.5 psi） |
| モジュールの耐薬品性: | 最大2,000 mg/lのnaoclまでの耐性 | モジュール最適化設計: | 77m2 |
| SFP-2880の幅広い応用範囲: | 表流水、海水、都市飲料水の処理に適しています | 膜タイプ: | 工業用グレード限外ろ過膜コンポーネント |
製品の説明
DuPont™ SFP-2880 UF Module – Cost-Effective RO Pretreatment & Water Reuse
Product Overview
Protect your reverse osmosis system and reduce operational expenses with the DuPont™ SFP-2880. This robust UF module serves as a critical barrier, efficiently removing contaminants that cause RO fouling. By ensuring superior feed water quality, it extends RO membrane lifespan, minimizes chemical cleaning, and lowers the total cost of ownership for your water treatment plant.
Key Features
- Advanced Filtration Performance: Removes bacteria, viruses, and colloids with high efficiency; achieves filtrate turbidity below 0.1 NTU and SDI under 2.5; ideal protection for reverse osmosis systems
- Engineered Durability: Chemical-resistant PVDF membrane withstands extreme pH conditions; U-PVC housing eliminates need for pressure vessels; operating temperature range supports global deployments
- High-Efficiency Design: Industry-leading membrane area enables high flow rates; outside-in flow handles high solids loading; reduced backwash frequency lowers water consumption
- Operational Reliability: Consistent performance in municipal and industrial settings; minimal maintenance requirements; compatible with automated control systems
Technical Specifications
| Attribute | Value |
|---|---|
| UF Module Flux Range | 40–90 LMH (24–53 gfd) at 25°C |
| Flow Rate per Module | 2.0–6.9 m³/hr (8.8–30.4 gpm) |
| UF Module Temperature Limits | 1–40°C (34–104°F) |
| UF Module Max Operating TMP | 2.1 bar (30.5 psi) |
| Chemical Tolerance | Withstands up to 2,000 mg/L NaOCl |
| Membrane Area | 77m² |
| Membrane Type | Industrial Grade Ultrafiltration Membrane Components |
Product Specifications
| Model | Type | Part # | Membrane Area (m²/ft²) | Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 / 829 | 39 / 10.3 | 61 / 135 (empty), 100 / 220 (water filled) |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Flow range | 3.1-9.3 m³/hr | 13.6 - 40.9 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm³/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
Important: If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.

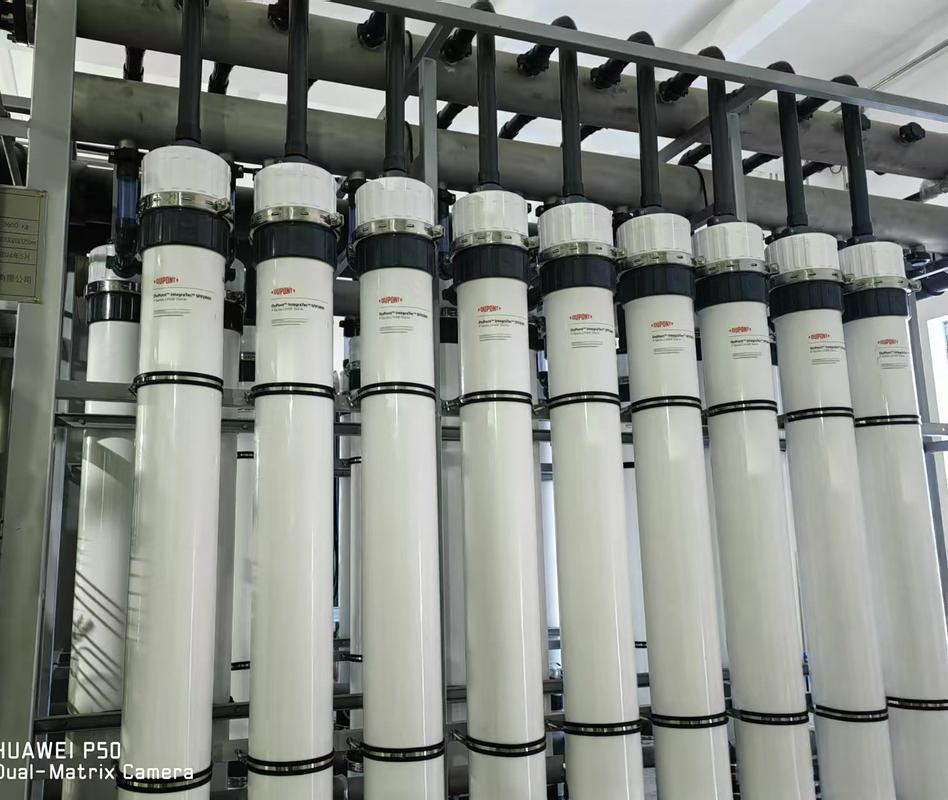

Module Installation
For application cases, please visit: www.fgwater.com/Industries/
