詳細情報 |
|||
| XP 77 IG モジュールの有効膜面積: | 8インチ | XP 77 IG モジュールの流量: | 2.0–8.5m³/hr（8.8–37.6 gpm） |
|---|---|---|---|
| XP 77 IG モジュールの最大フィード圧力: | 20°Cで6.25バー（90.65 psi） | XP 77 IG モジュールの公称細孔径: | 0.03 µm |
| XP 77 IG モジュールの最大逆洗圧力: | 2.5バー（36 psi） | 最大。 XP 77 IG モジュールの TMP の動作: | 2.1バー |
| XP 77 IG モジュールの最大動作空気スカー流量: | 12 nm3/hr | XP 77 IG モジュールの NaOCl (最大): | 2,000 mg/l |
| 認証: | ISO 9001、NSF、CE | 応用: | 純粋 な 水 の 生産 |
| 利点: | 高効率・省エネ | ||
製品の説明

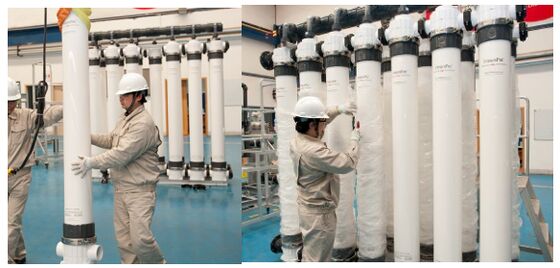

The DuPont™ IntegraTec™ XP 77 IG is a high-performance pressurized ultrafiltration module designed for open platform integration. Featuring 77 m² of hydrophilic PVDF hollow fiber membrane with 0.03 μm pore size, it ensures superior removal of colloids, bacteria, and viruses. Ideal for industrial water, wastewater reuse, and RO pretreatment, it supports high recovery operation, strong chlorine resistance, and reduced chemical consumption. The robust, modular design allows easy installation and low maintenance, ensuring reliable long-term performance in demanding applications.
| Attribute | Value |
|---|---|
| Effective membrane area | 8 inch |
| Flow rate per module | 2.0–8.5 m³/hr (8.8–37.6 gpm) |
| Max feed pressure | 6.25 bar (90.65 psi) at 20°C |
| Nominal pore diameter | 0.03 µm |
| Max backwash pressure | 2.5 bar (36 psi) |
| Max operating TMP | 2.1 bar |
| Max operating air scour flow | 12 nm3/hr |
| NaOCl (max.) | 2,000 mg/L |
| Certifications | ISO 9001, NSF, CE |
| Application | Pharma and Beverage |
The DuPont IntegraTec XP 77 IG ultrafiltration module delivers industry-leading performance for demanding industrial water treatment applications. Engineered with advanced PVDF hollow-fiber technology, it combines exceptional filtration efficiency with robust durability to reduce operational costs and system footprint.
- Superior Filtration Efficiency
- 0.03 µm nominal pore size: Effectively removes bacteria, viruses, colloids, and particulates
- High-flux design: 35% higher permeability than previous-generation modules
- Robust Construction & Reliability
- PVDF hollow-fiber membrane: Exceptional mechanical strength and chemical resistance (pH 2-11)
- U-PVC housing: Eliminates the need for external pressure vessels
- Optimized Operational Economics
- Outside-in flow configuration: Tolerates feedwater with high suspended solids
- Innovative end-cap design: Simplifies piping and saves space
| Model | Type | Membrane Area (m²/ft²) | Module Volume (Liters/Gallons) | Weight (Kg/lbs) |
|---|---|---|---|---|
| XP77 IG | Industrial | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| XP77 | NSF/ANSI 61 and 419 | 77 / 829 | 39 / 10.3 | 61/100 (empty) 135/220 (water filled) |
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m2/hr | 24-65 gfd |
| Flow range | 2.0 - 8.5 m3/hr | 8.8 - 37.4 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Max. operating TMP | 2.1 bar | 30.5 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 | |
| NaOCl (max.) | 2,000 mg/L | |
| Particle size (max.) | 300 µm | |
| Flow configuration | Outside in, dead end flow | |
