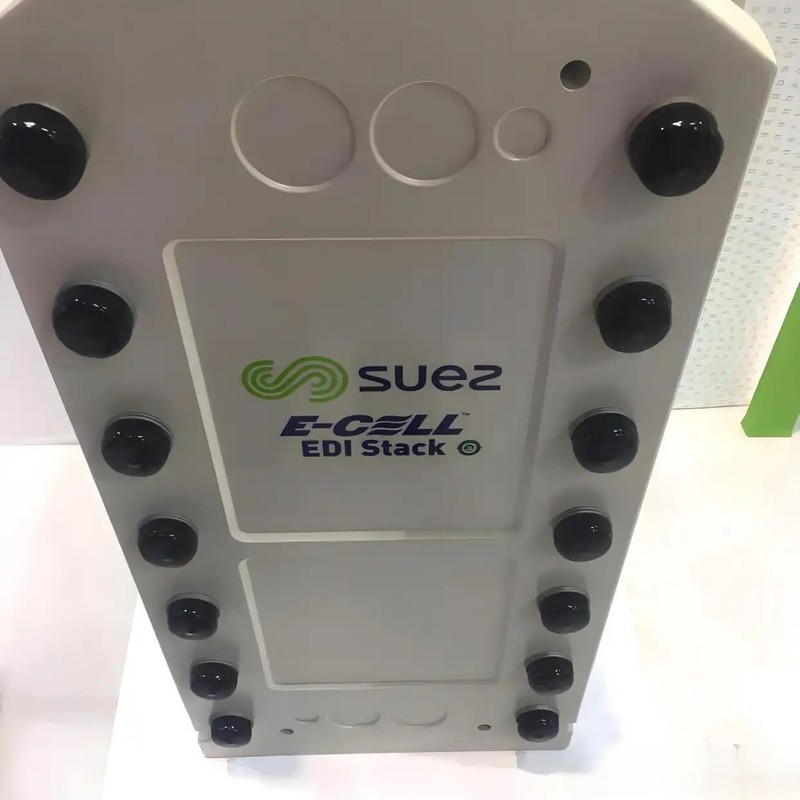

Veolia E-Cell MK-3 EDI Stack for Continuous High-Purity Water Production
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | VEOLIA |
| 証明: | CE |
| モデル番号: | Veolia EDIモジュールE-Cell MK-3 |
| ドキュメント: | Veolia EDI catalog.pdf |
お支払配送条件:
| 最小注文数量: | 1 PC |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | T/T |
| 供給の能力: | 月額60000ユニット |
|
詳細情報 |
|||
| 標準の最大水生産（M3 /HR）: | 4.5 | 標準的な最小水生産（M3 /HR）: | 1.6 |
|---|---|---|---|
| 標準回収: | 最大96％ | このスタックの標準配送重量: | 100 kg（220ポンド） |
| 標準硬度（CACO3としてのPPM）: | <1.0 | ナトリウム: | ≤3ppb |
| ボロン: | 0.08 ppbの低い | pH範囲: | 4〜11 |
| 色: | ≤5APHA | 抵抗率: | ≥16mohm-cm |
| モジュールアプリケーション: | 産業高純度の水準備 | ||
| ハイライト: | Veolia E-Cell MK-3 EDI stack,high-purity water production EDI stack,Suez EDI stack with warranty |
||
製品の説明
The Veolia E-Cell MK-3 Electrodeionization (EDI) Stack is designed for the continuous production of high-purity water, effectively removing ionized and weakly ionized substances from reverse osmosis (RO) permeate. It delivers ultra-pure water with resistivity up to 18 MΩ·cm without the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for industries such as power generation, pharmaceuticals, microelectronics, and semiconductors, the MK-3 stack ensures reliable performance, high system recovery rates, and stable operation under varying conditions. Its robust construction supports long service life and minimal maintenance, making it a critical component in industrial water purification systems
| Attribute | Value |
|---|---|
| Maximum water production (m³/hr) | 4.5 |
| Minimum water production (m³/hr) | 1.6 |
| Recovery | Up to 96% |
| Shipping Weight | 100 kg (220 lbs) |
| Hardness (ppm as CaCO₃) | <1.0 |
| Sodium | ≤ 3 ppb |
| Boron | As low as 0.08 ppb |
| pH Range | 4 to 11 |
| Color | ≤ 5 APHA |
| Resistivity | ≥ 16 MOhm-cm |
| Application | Industrial High Purity Water Preparation |
Industrial-grade continuous electrodeionization technology utilizing DC electric fields to drive ion migration, combining ion-exchange resins and selective membranes for continuous impurity removal.
- In-situ electrochemical regeneration: Eliminates chemical acid/base regeneration
- Three-channel design: Counter-current operation reduces scaling risks (verified pressure drop: 1.4-3.4 bar)
- Chemical-free operation: Complies with ISO 14001 standards
- Compact modularity: MK-series depth 29-74 cm for space efficiency
- Thermal sanitization: Supports 85°C hot-water sanitization (≥160 cycles), meeting cGMP
- Energy optimization: 20% reduced energy consumption vs conventional EDI (0-400 VDC)
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m³/h (15 gpm) |
| Flow Rate Range | 1.7 - 4.5 m³/h (7.0 - 20 gpm) |
| Dimensions (W x H x D) | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Product Water Quality | Resistivity ≥ 16 MOhm-cm, Sodium ≤ 3 ppb, Silica ≤ 5 ppb, Boron ≤ 0.08 ppb |
| Removal Efficiencies | Sodium ≥ 99.9%, Silica up to 99%, Boron up to 96% |
| Operating Parameters | Voltage 0-300 VDC, Amperage 0-5.2 ADC, Inlet Pressure ≤ 6.9 bar |
- Ultrapure water for semiconductor chip rinsing and microelectronics
- Demineralized boiler feed water for power plants and industrial facilities
- CE, RoHS, CSA, and EAC certified
- ISO 9001 and ISO 14001 compliant manufacturing
- UKCA certified
- Halal certified by IFANCA®
For more models and information, visit: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html
