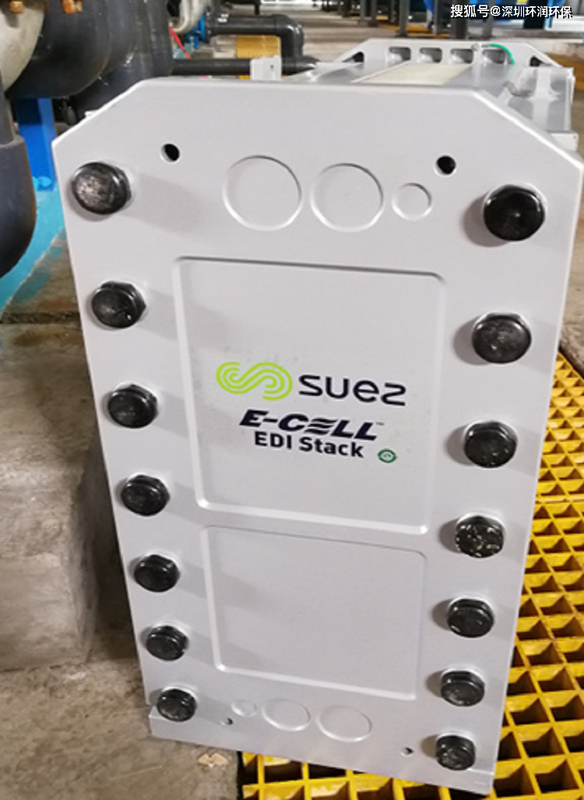

Veolia E-Cell MK-9 EDI Stack (formerly MK-7) For Large-Scale Industrial Ultrapure Water Production
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | VEOLIA |
| 証明: | CE |
| モデル番号: | MK-9 (旧 MK-7) |
| ドキュメント: | Veolia EDI catalog.pdf |
お支払配送条件:
| 最小注文数量: | 1台のパソコン |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | 標準輸出梱包 |
| 受渡し時間: | 5-8勤務日 |
| 支払条件: | 、t/t |
| 供給の能力: | 月額60000ユニット |
|
詳細情報 |
|||
| 名前: | MK-9 | MK-9スタックの寸法（幅x x height x深さとしてcm）: | 30 x 61 x 74 |
|---|---|---|---|
| MK-9 スタックの総交換可能陰イオン (CaCO3 として ppm): | <13 | MK-9スタックの導電率(μS/cm): | <22 |
| MK-9 スタックの pH: | 4-11 | MK-9スタックの温度(℃): | 4.4-40 |
| 硬度（CACO3としてのPPM）: | <1.0 | シリカ（SIO2としてのPPM）: | <1.0 |
| 典型的な設計された水生産（M3 /HR）: | 6.0-10.0 | 回復: | 最大97％ |
| 電圧: | 0〜400 VDC | 典型的なニュービルドアプリケーション: | 太陽光発電と緑色の水素 |
製品の説明
The Veolia E-Cell MK-9 EDI Stack (formerly MK-7) represents the high-capacity solution in Veolia's EDI portfolio, delivering 6.0-10.0 m³/hr of continuous ultrapure water for demanding industrial applications. With its enhanced flow capacity and proven reliability, this stack is specifically engineered for large-scale operations where consistent high-purity water production is critical.
Featuring the same advanced electrodeionization technology as other E-Cell models, the MK-9 eliminates chemical regeneration while maintaining superior product water quality (>16 MOhm-cm resistivity). Its robust construction and optimized hydraulic design ensure stable performance in challenging operating conditions across power generation, semiconductor manufacturing, and large-scale industrial water treatment plants.
Key Advantages:
-
High-flow capacity: 6.0-10.0 m³/hr production range
-
Proven reliability in large-scale industrial applications
-
Zero chemical consumption for regeneration
-
Consistent high-purity output (>16 MOhm-cm)
-
Direct upgrade path for existing MK-7 installations
Applications:
-
Semiconductor and microelectronics manufacturing
-
Power plant boiler feed water systems
-
Large-scale pharmaceutical water systems
-
Solar panel production and green hydrogen applications
Choose the MK-9 for your high-volume ultrapure water needs and benefit from Veolia's industry-leading EDI technology with enhanced capacity and reliability. Contact us for detailed technical specifications and project support.
| Attribute | Value |
|---|---|
| Stack Name | MK-9 |
| Dimensions (cm) | 30 x 61 x 74 (W x H x D) |
| Total exchangeable anions (ppm as CaCO3) | <13 |
| Conductivity (μS/cm) | <22 |
| pH Range | 4-11 |
| Temperature Range (°C) | 4.4-40 |
| Hardness (ppm as CaCO3) | <1.0 |
| Silica (ppm as SiO2) | <1.0 |
| Typical designed water production (m3/hr) | 6.0-10.0 |
| Recovery Rate | Up to 97% |
| Voltage | 0–400 VDC |
| Typical Applications | Solar Photovoltaics And Green Hydrogen |
| Parameter | Value |
|---|---|
| Brand | Veolia EDI |
| Inlet Pressure | 6.9 bar (100 psi) |
| Max Temperature | 40°C (104°F) |
| Pressure Drop | 2.4-3.4 bar (35-50 psi) |
| Flow Rate | 8.0m3/h |
| Shipping Weight | 165 kg (364 lbs) |
- Continuously produces ultrapure water of mixed bed water quality
- No acid and base regeneration required
- Guaranteed leak-proof design
- Simplified system design with no brine injection or concentrated water circulation
- Power generation (NOx, boiler feed water)
- Electronics manufacturing
- General industrial applications
- Pharmaceutical & Biotech (WFI pre-treatment)
- Microelectronics & Semiconductor Manufacturing
- Laboratory Ultra-Pure Water Systems
